Road waterlogging monitoring
multifunctional road waterlogging station HD-DPZ120
- Range: 1.5m (default), customizable
- LED display screen: customizable in size
- Optional: rain gauge, camera, alarm, traffic signal light, etc
- Transmission method: broadband or 4G wireless transmission
- Product description: The online monitoring station for urban road waterlogging and waterlogging is independently developed by Chongqing Haydun Technology Co., Ltd. It is mainly used to monitor the waterlogging situation i
-
System Introduction

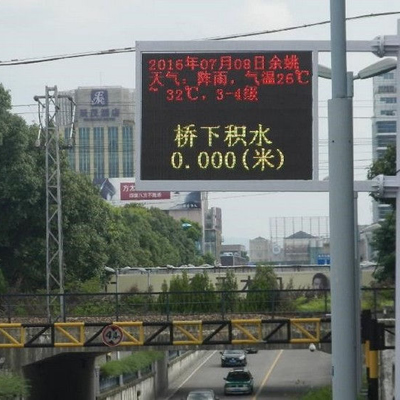

The online monitoring station for urban road waterlogging and waterlogging is independently developed by Chongqing Haydun Technology Co., Ltd. It is mainly used to monitor the waterlogging situation in low-lying areas of urban roads, tunnels, and under overpasses. The system adopts the concept of the Internet of Things to integrate monitoring and transmission technology. Through sensors such as electronic water gauges and radar water level gauges, it automatically collects the accumulated water level. On the one hand, it reminds passing vehicles through LED displays, and on the other hand, it uploads accumulated water data to the cloud server software platform through wireless data transmission. Through websites and mobile devices, it provides real-time monitoring and early warning of accumulated water depth for government departments and the public, and provides targeted data support for government decision-making, command and scheduling.

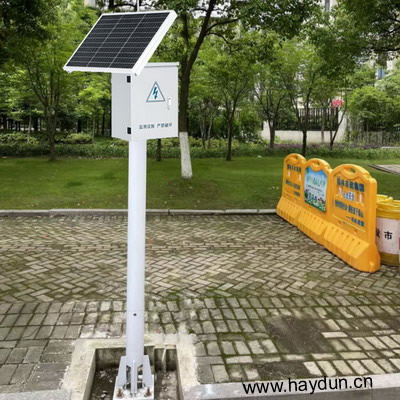

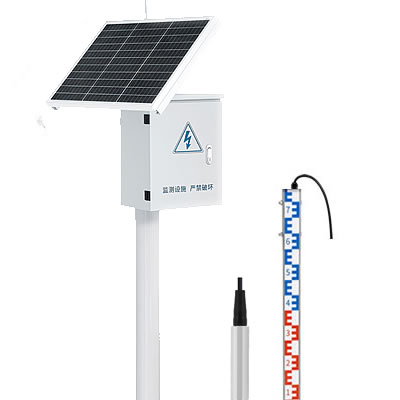

The solution to urban waterlogging and waterlogging problems must be based on the concept of systematic monitoring. The urban waterlogging and waterlogging monitoring system in Chongqing Haidon consists of an on-site monitoring station and monitoring center platform software. The on-site monitoring station consists of an electronic water level gauge/radar water level gauge, rain gauge, video monitoring, sound and light alarm, LED display screen, telemetry terminal, and power supply system. The monitoring center software platform can remotely monitor real-time data such as ground runoff, airborne rainfall, and drainage network convergence in key areas. Based on the monitoring data information, a distributed hydrological model is used to achieve water level warning function.
Functional characteristics
Through the monitoring of urban road waterlogging, regular monitoring, early warning and early preparation can be achieved. Before the rainy season comes, the water conditions in various areas of the city can be analyzed in advance in combination with previous data and precipitation forecast information, and the places that may be flooded due to rainstorm can be dealt with accordingly to reduce the probability of urban waterlogging. At the same time, early warning work can be done for the people in the areas where water level rises. When the water level is too high and equipment is abnormal, the system will automatically alarm, and automatically send alarm messages to the responsible person's mobile phone, so as to reduce the economic losses of the people and ensure their personal safety.
(1) Wide application range: It can simultaneously monitor the accumulation of water in low-lying areas of roads, underpass overpasses, and tunnels, and remotely transmit it to the urban waterlogging monitoring system center through GPRS/4G network.
(2) Multi type collection: The urban waterlogging monitoring solution system integrates functions such as rainfall collection, image collection, and water level collection. Through system forecasting analysis, early warning information is promptly released to the control center.
(3) Multi channel warning: The warning is issued through various familiar methods such as broadcasting, LED electronic screens, warning lights, SMS, etc. Timely prevent personnel and vehicles from entering deep water sections and causing losses.
(4) Diversified information: Users can view monitoring information in real-time through mobile phones or cloud platforms, as well as on the monitoring video screen.
∷
