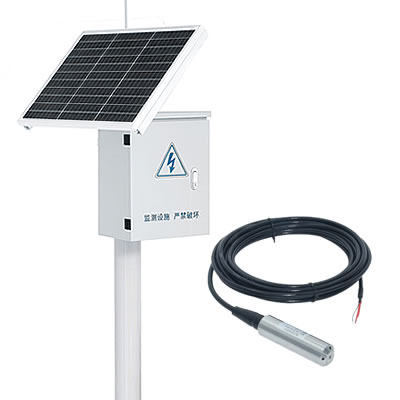

Drainage network flow online monitoring system

Products

Drainage network flow online monitoring system is independently developed by Chongqing Haydun Science and Technology Co., Ltd. using low-power monitoring terminals and other equipment, manhole or outlet flow collection, through the wireless network transmission pooling, through the information management, urban drainage emergency management, large-scale pumping station integrated automation control and water resources management and other applications, serving flood control and drought relief, urban water information technology, water monitoring and management of a number of business management. Management and other business management. As an important part of sponge city construction, the drainage network flow online monitoring system provides basic monitoring data for sponge city, effectively improves the comprehensive capacity and management level of water conservancy industry management, and realizes the transformation to dynamic management, fine management, quantitative management and scientific management.
Municipal drainage network is the underground lifeline of the city, characterized by large changes in flow, complex flow patterns, poor water quality, poor equipment installation environment and so on. Its flow monitoring can provide basic data for solving urban flooding, pipeline damage, pipeline siltation, and provide a basis for the operation and maintenance of urban pipeline network. At the same time, the systematic study of urban pipe network flow, can systematically grasp the operating conditions of the network, for the drainage network renovation, new construction to provide specific data support. And because of the specificity of the municipal pipe network, it is necessary to choose the suitable flow monitoring equipment according to the actual needs in order to obtain accurate flow data persistently and minimize the amount of equipment maintenance.

Functional Features

1, the system can real-time monitor the flow rate, flow, and water level and other parameters in the urban drainage network, and real-time transmission of monitoring data to the data acquisition and processing software for processing and analysis.
2、The system can analyze the monitoring data in real time according to the preset thresholds, and once abnormal situations are found, such as excessive flow rate, excessive liquid level, etc., the system will automatically send out alarm signals to remind the relevant personnel to take timely measures.
3, the system can store and manage the collected data, and provide historical data query function, the user can query the data within a specific time period according to the need for data analysis and decision-making.
4、The system adopts lithium battery power supply, which can ensure the stable power supply of the system and avoid the interruption of monitoring caused by power failure. At the same time, Doppler flowmeter has the characteristics of high precision and non-invasive, can accurately measure the flow rate and flow in the urban drainage network.
5、The system can monitor the operation of the urban drainage network in real time, identify problems and take corresponding measures in time to improve the efficiency and reliability of the drainage system.
6、Data analysis and decision-making support: the system can process and analyze the collected data, generate corresponding reports and charts, provide data analysis and decision-making support for relevant personnel, and help them better manage and maintain the urban drainage network.

Configuration list

software platform

The design of the system is based on GPRS data transmission technology and network technology, the software development of Chongqing Haidun Technology Co., Ltd. is designed in the way of B/S architecture.B/S structure has good expandability, there are no special requirements for the client, and there is no restriction on the number of users, only need to support the network and have the function of the browser.B/S mode is only to install the application program in the server, and the client doesn't need to install the program, directly use IE or other browsers to use, modify the application program is only related to the server, the client doesn't make any changes. B/S mode only installs the application on the server, the client does not need to install the program, directly using IE or other browsers can be used to modify the application is only related to the server, the client does not make any changes, the operation is simple, easy to maintain.
